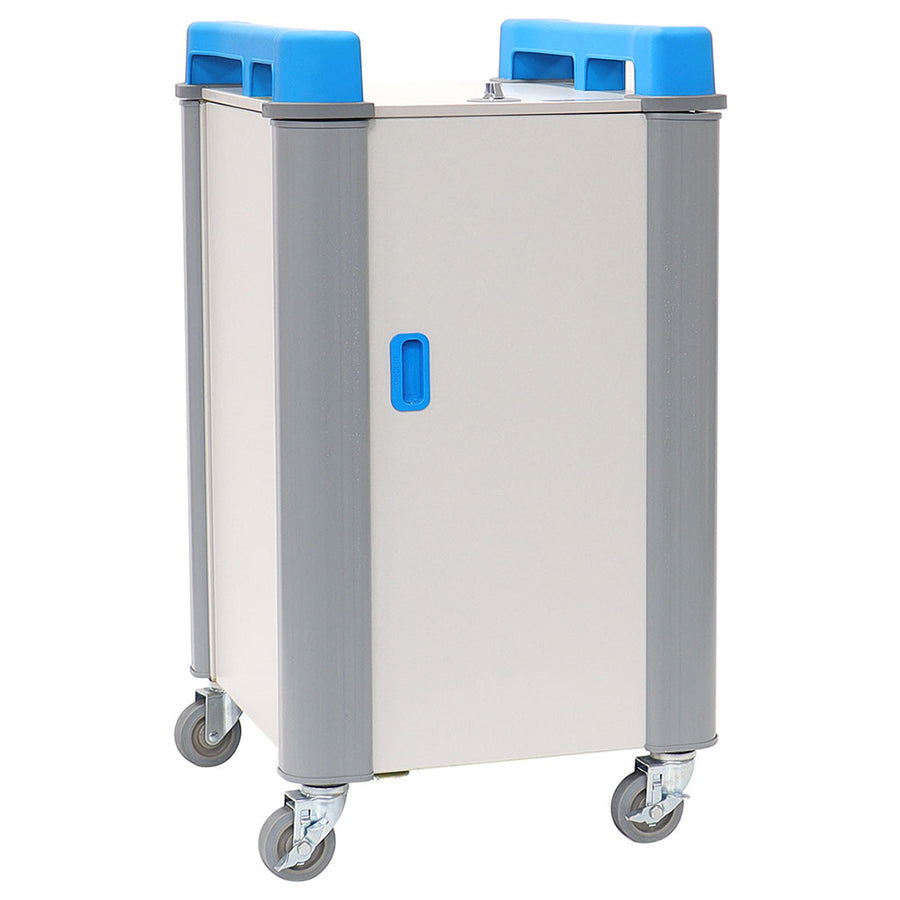

Lapcabby 16 Bay Vertical Charging Unit

Device Protection

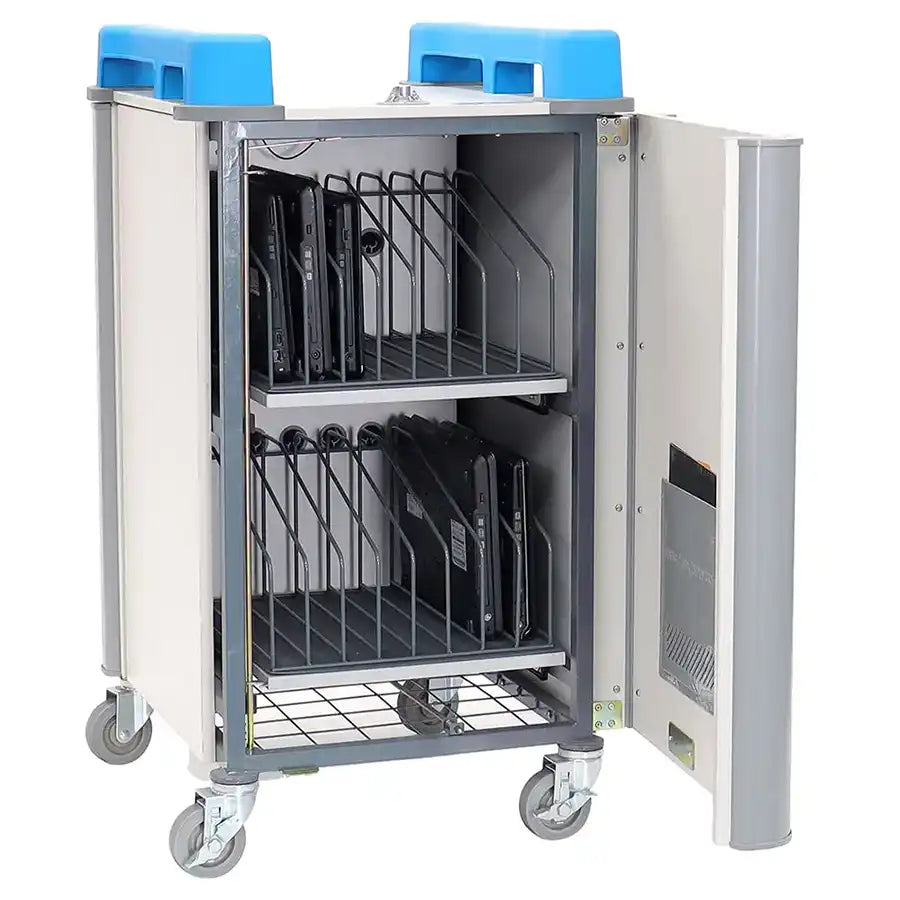

Devices stored vertically in individual compartments separated with fixed dividing bars to prevent toppling and damage
Individual rubber mats with ventilation strips keep devices protected and secured in place during movement

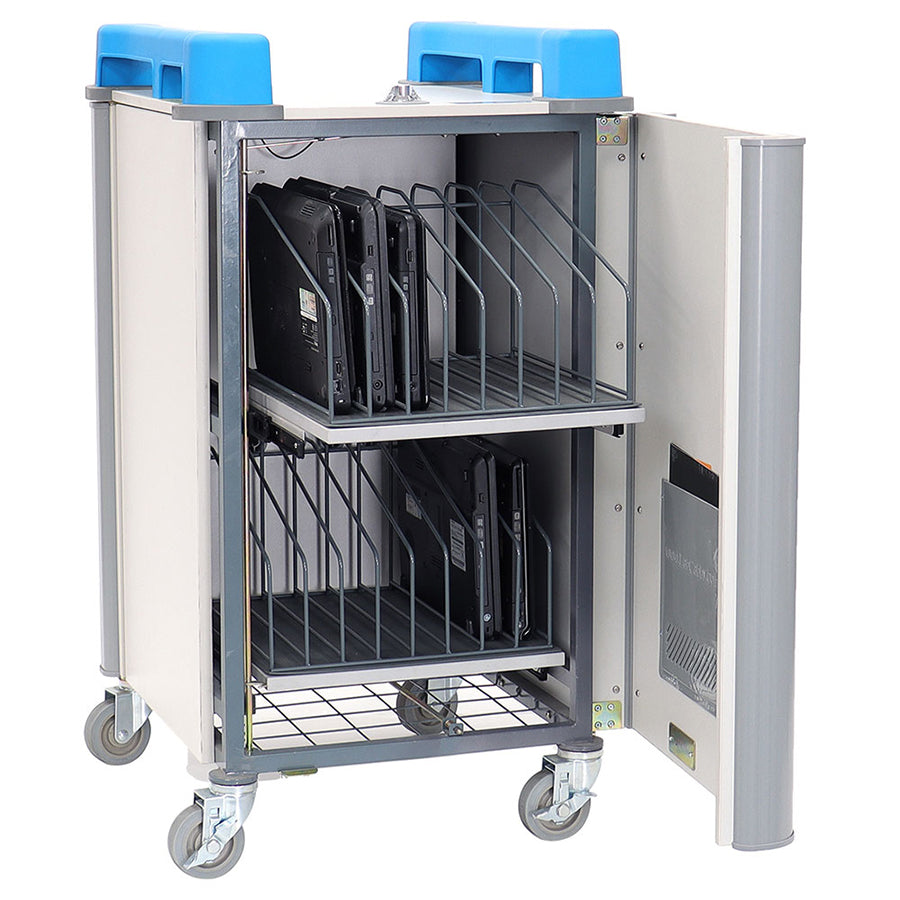

Sliding shelves allow easy access to devices and prevents scratching devices when removing or replacing

Charging
Charges 16 devices up to 17″ screen size – laptops and Chromebooks
Device adaptors plug into 2 x 8-way power strips designed and manufactured in-house
Sockets accommodate larger adaptors and plugs without blocking adjacent outlets
IEC socket with 1.8m / 6ft power cord designed to snap out if pulled away from the wall to prevent damage
Fitted with a Power7 Management System that includes;
Soft start function measures the in-rush current and prevents overload during start-up by powering up each power strip in 1.5 second intervals, full power-up occurs within 6 seconds
Simultaneous charging of all 16 devices, monitoring the current to ensure no over or undercharging
Fuse protection against power surges and overloads
Sophisticated timer that can be set to constant charging, cycle charging and can be programmed to a charging schedule (3 schedules, 7 days a week)
Easy to operate with instructional LED display screen and two push buttons to adjust charging requirements

Cable Management
Perfectly designed cable clips secure charging cables to dividing bars to ensure cables are locked in place next to the device
Individual AC adaptor pockets are specially designed to keep cables organised and free from damage
Ventilated AC adaptor pockets keep air circulating around adaptors and cables to prevent overheating
Cable clip portholes feed cables from the back power compartment to the front device compartment, preventing cables from being removed with the device

Practicality
Ergonomic wide grip ABS handles for light touch easy movement
Fitted with large all directional swivel, non-marking hospital-grade rubber wheels (2 braked)
Thick steel binding plate connects heavy duty wheels to the cart ensuring wheels never buckle or loosen
Rounded corners fitted with rubber corner bumpers and extrusions for shock absorption to prevent damage to walls and devices inside

Security and Protection
Separate secured power compartment for ultimate safety and security

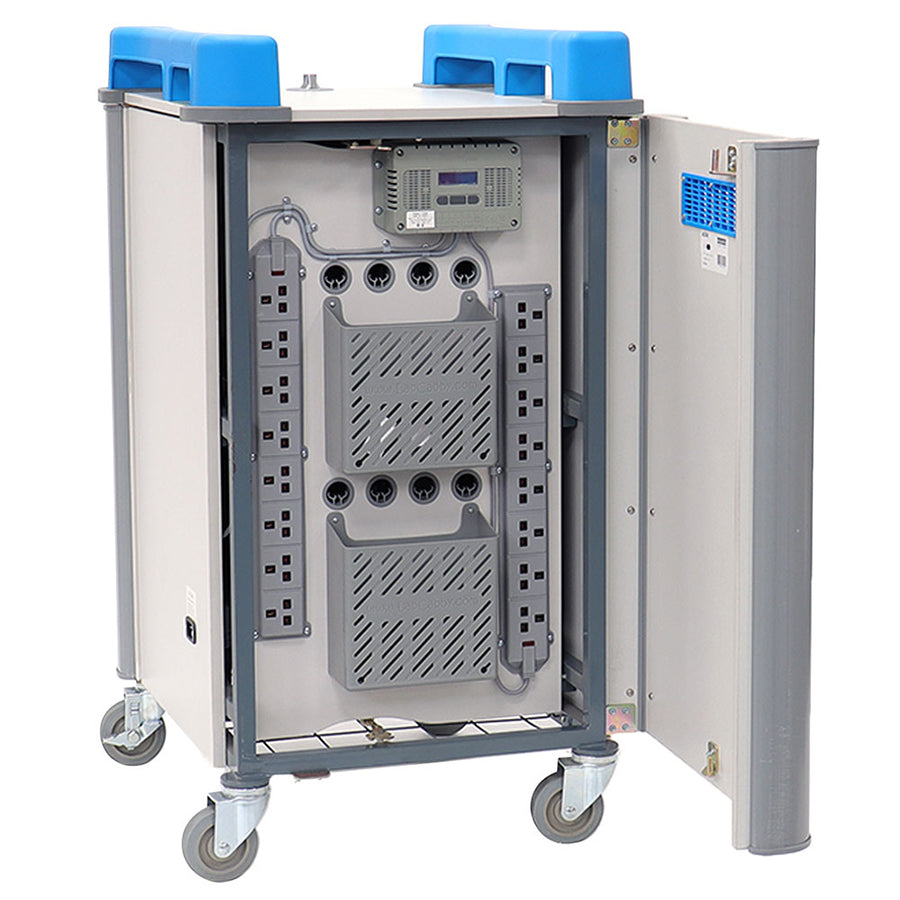

Concealed lever unlocks rear power compartment to enable clear access to cables and AC adaptors when required
Built-in heat sensor will shut off power if a device overheats or if the interior temperature reaches 32C/90F degrees to prevent the risk of fire or damage to devices

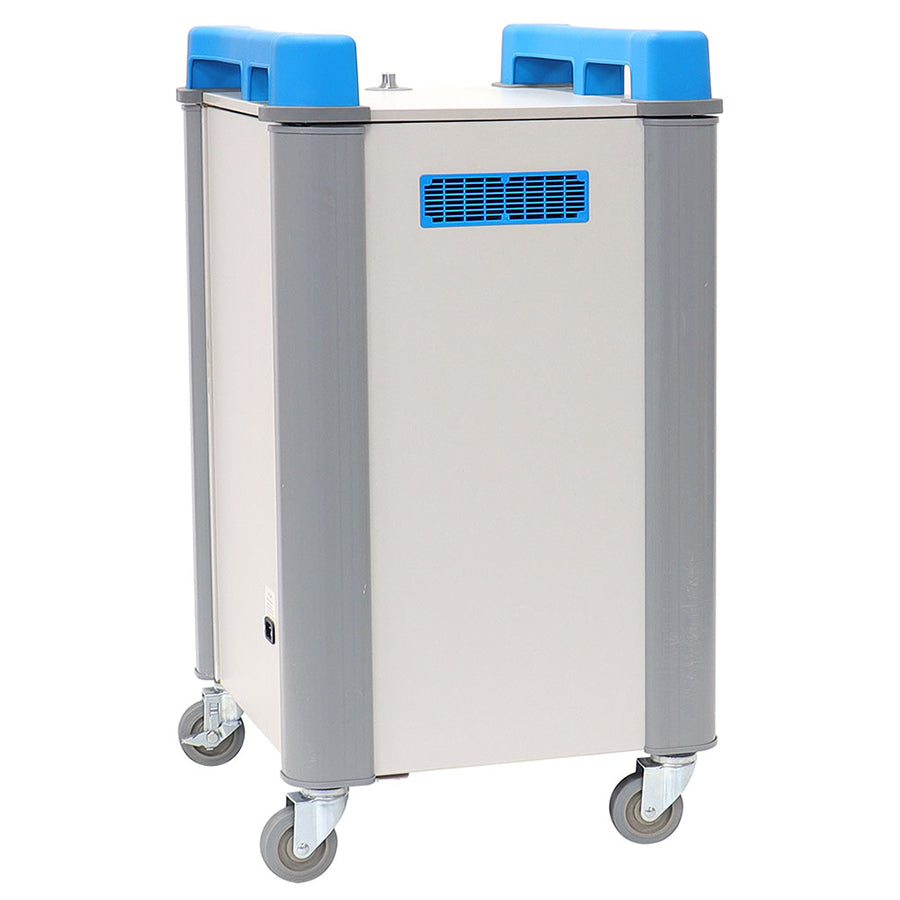

Silent ventilation system includes side and rear vents plus a uniquely designed weldmesh base to keep devices cool with constant air circulation without the need for a noisy fan that can spread germs
Locking system mounted on the top surface to avoid keys snapping inside the lock during movement
Dual point locking system, with keys provided, to secure at the top and bottom of both device and power compartment to prevent theft, damage or tampering
Inset door handles prevent protruding parts eliminating breakages
Safety tested and certified by the independent Underwriters’ Laboratory (UL)

Set Up
Ships fully assembled with handles and wheels fitted
Large L shaped doors open wide for easy access to devices and cable management compartments
Power7 Management system preset for 3 daily charging schedules on weekdays with no charging schedules set for weekends, instructions supplied to amend charging schedule easily
Instruction Booklet supplied with technical support via phone, email or 24/7 live chat on hand

Technical Specifications

Warranty and certifications

• Warranty: Lifetime Warranty (5 Year Electrical)
• UK Certification: CE Certified | EN 62368-1:2014
• ICO Certification: ISO 9001 & ISO 14001

The LapCabby products have been designed and built with safety as the highest priority, and has full CE & UKCA compliance. CE & UKCA marking can be found on the product ratings label, the Declaration of Conformity along with the technical file can be supplied on request. Safety testing is a high priority to LapCabby. We don’t release any products unless the unit has been completely certified including electrics, materials, construction and components.

Supporting Documents

• Specification Sheet
• Instruction Manual
• Product Warranty
